phyCORE®-i.MX 8X Development Kit
Root Part #: KPCM-065
Featuring the phyCORE-i.MX 8X System on Module
$389.00
Product Overview
The kit features the phyCORE-i.MX 8X System on Module, which is based on the NXP i.MX 8X family of processors.
Learn more about the phyCORE®-i.MX 8X
Expand All
Features
SOM Features
NXP i.MX 8X Quad 1.2 GHz
2 GB LPDDR4
8 GB eMMC Flash
64 MB Octal SPI NOR Flash
2x 4 kB EEPROM
1x Gigabit Ethernet PHY
NXP SE050 Security chip
280-pin (2x connectors) interconnect
Carrier Board Features
1x Micro-SD Card slot
1x USB 2.0 Standard A
1x USB 2.0 Micro-AB connector
1x USB Type-C connector
2x Gigabit Ethernet (RJ45)
2.4GHz WiFi + BT
1x PCIe
2x LVDS Display interface
1x MIPI CSI-2 camera connector (phyCAM-M)
SGTL5000 Audio codec (Headphone, Speaker Out, Stereo Line-In, Stereo Line-Out, Mic Input, Optical)
1x RS-232 serial port (DB9)
2x UART to micro USB connector (debug serial)
1x CAN port (2x5 pin header to DB9)
Various expansion interfaces for I2C, SPI, GPIO
JTAG Connector (20-pin)
Fan Connector
470 mF SuperCap VBAT
12V/2A Barrel Jack Power Input
Software
Linux |
|
|
BSP-Yocto-FSL-i.MX8X-PD21.1.0
Date: 2021-02-26
|
Yocto Zeus 3.0 (Linux kernel 5.4.24) |

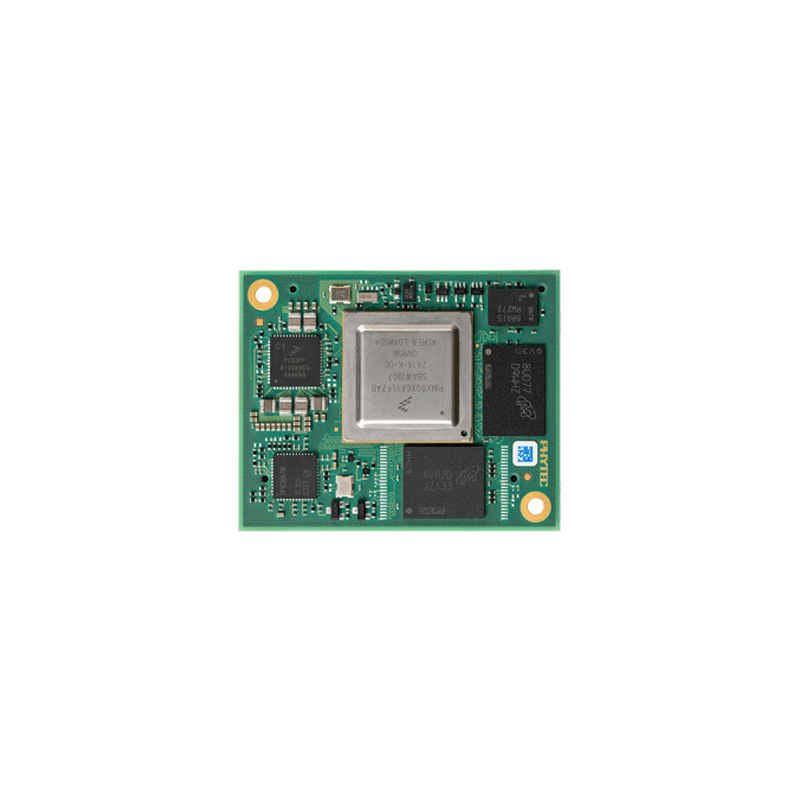

System On Module
phyCORE®-i.MX 8X
Highly reliable module for industrial automation devices.
