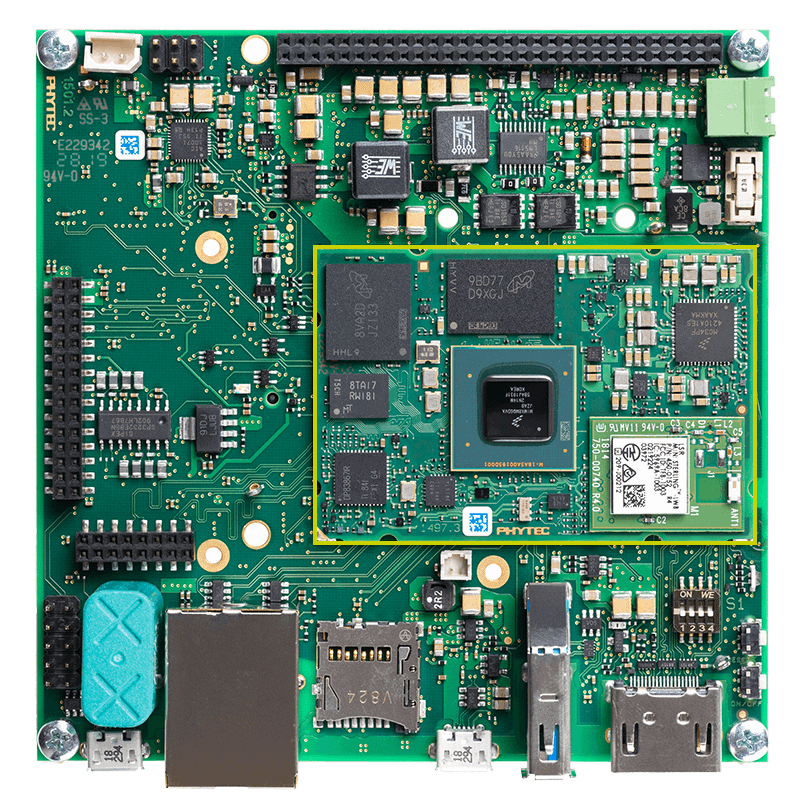

phyBOARD®-i.MX 8M Development Kit
Root Part #: KPB-02419
Featuring the phyCORE-i.MX 8M System on Module
$299.00
Product Overview
The kit features the phyCORE-i.MX 8M System on Module, which targets applications requiring advanced audio and video and voice processing. PHYTEC also extends the NXP i.MX 8M processor features by adding advanced integrated WiFi and an easy-to-integrate BGA SOM module.
Learn more about the phyCORE®-i.MX 8M
Expand All
Features
SOM Features
NXP i.MX 8M Quad 1.3 GHz
2 GB LPDDR4 RAM
16 GB eMMC Flash
4 kB EEPROM
1x Gigabit Ethernet PHY
2.4GHz WiFi + BT
501-pin direct solder BGA interconnect
Carrier Board Features
1x Micro-SD Card slot
1x USB 3.0 Standard A connector
1x USB 2.0 Micro-AB connector
Micro USB debug serial interface
1x Gigabit Ethernet (RJ45)
1x mini PCIe Connector
MIPI-DSI Display via expansion interface
HDMI
2x MIPI CSI-2 camera connectors (phyCAM-M)
TLV320AIC3007 audio codec (Headphone, Stereo Line-In, Class D Diff Out Speaker)
1x RS-232 serial port (2x5 pin header to DB9)
1x RS-485 serial port (2x5 pin header to DB9)
3x LEDs
120-pin expansion interface for I2C, SPI, GPIO
JTAG via Expansion Connector
Fan Connector
220 mF SuperCap VBAT
12V/2A 2-pin Phoenix Power Input
